MPT-MG.MC.100100/(03)(05)(08)(10)(12)(15) 2P
Material CVD mechanical grade monocrystalline diamond
Size 10.0 × 10.0 mm
Thickness 0.3, 0.5, 0.8, 1.0, 1.2, 1.5 mm
Face Orientation {100}
Edge Orientation <110>
Lateral Tolerance + 0.2 / - 0.0 mm
Thickness Tolerance ± 0.05 mm
Roughness Smooth laser cut
Appearance White
MPT-MG.MC.100100/(03)(05)(08)(10)(12)(15) 2P
Material CVD mechanical grade monocrystalline diamond
Size 10.0 × 10.0 mm
Thickness 0.3, 0.5, 0.8, 1.0, 1.2, 1.5 mm
Face Orientation {100}
Edge Orientation <110>
Lateral Tolerance + 0.2 / - 0.0 mm
Thickness Tolerance ± 0.05 mm
Roughness Smooth laser cut
Appearance White

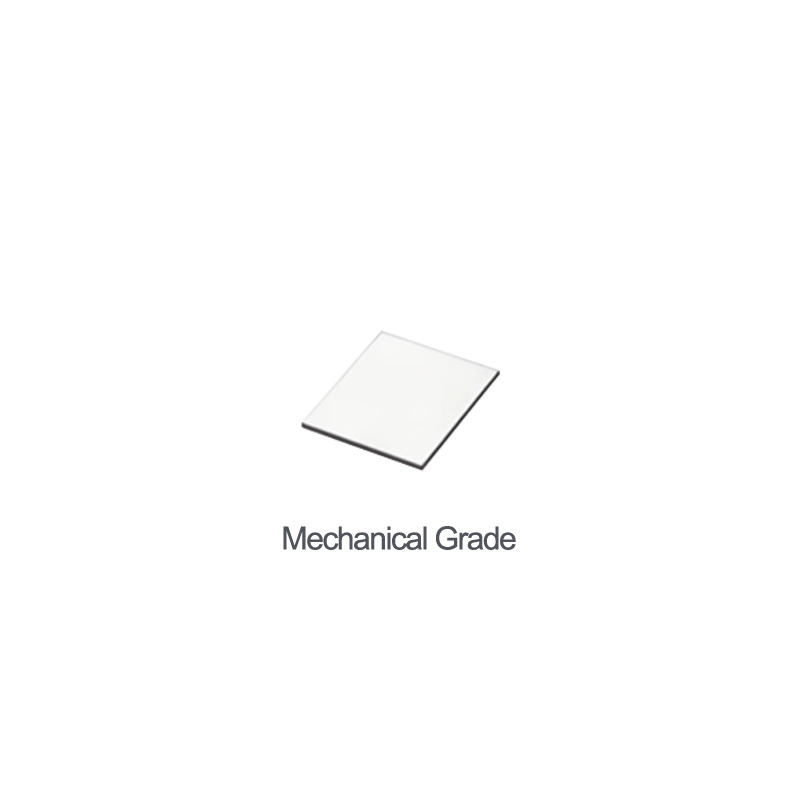

Grown using our CVD synthesis process, these monocrystalline diamond plates reach dimensions of up to 20 x 20 mm in area and 1.5 mm in thickness.
If you have specific size, thickness, roughness or other requirements, please feel free to contact us.
