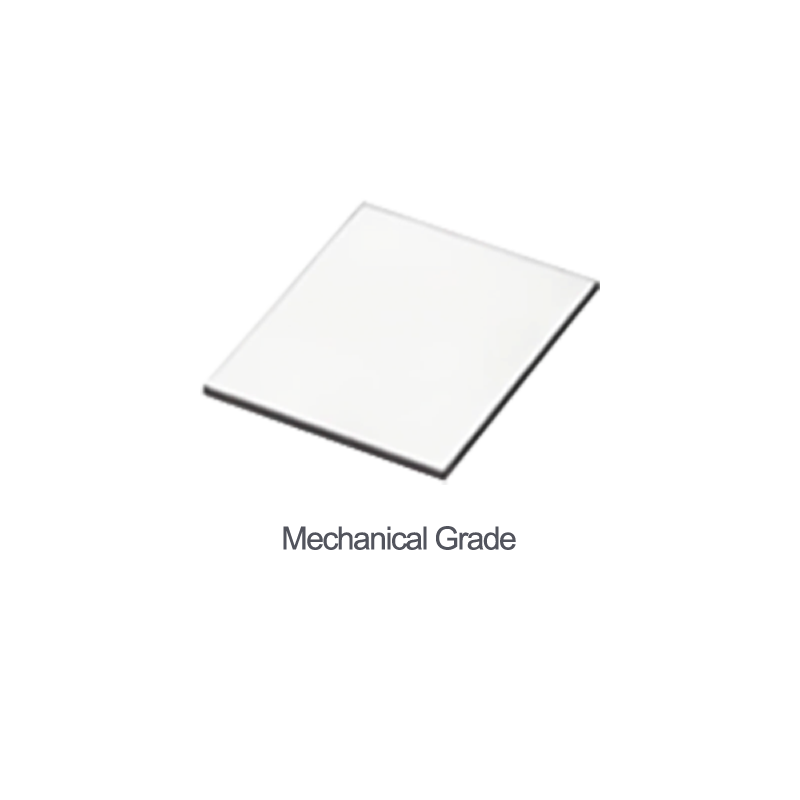

MPT-MG.MC.180180/05(08)(10) 2P
Material CVD mechanical grade monocrystalline diamond
Size 18.0 × 18.0 mm
Thickness 0.5, 0.8, 1.0 mm
Face Orientation {100}
Edge Orientation <110>
Lateral Tolerance + 0.2 / - 0.0 mm
Thickness Tolerance ± 0.05 mm
Roughness Smooth laser cut
Appearance White
MPT-MG.MC.180180/05(08)(10) 2P
Material CVD mechanical grade monocrystalline diamond
Size 18.0 × 18.0 mm
Thickness 0.5, 0.8, 1.0 mm
Face Orientation {100}
Edge Orientation <110>
Lateral Tolerance + 0.2 / - 0.0 mm
Thickness Tolerance ± 0.05 mm
Roughness Smooth laser cut
Appearance White
Grown using our CVD synthesis process, these monocrystalline diamond plates reach dimensions of up to 20 x 20 mm in area and 1.5 mm in thickness.
If you have specific size, thickness, roughness or other requirements, please feel free to contact us.
