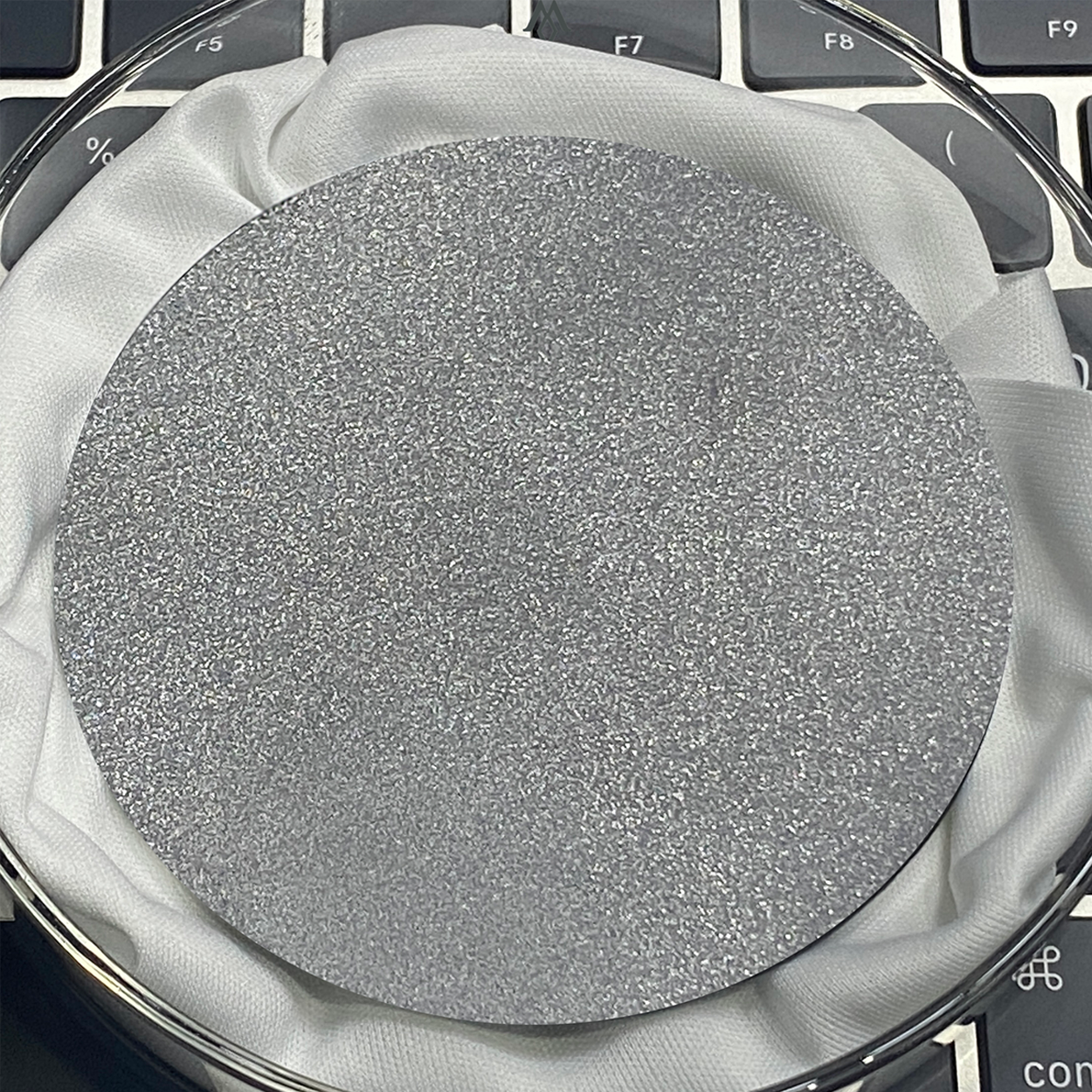

Material CVD polycrystalline diamond coated wafer
Wafer Size 1”- 6” in diameter
Diamond Thickness 300nm to 50micron
Edges Laser cut
Lateral Tolerance ± 0.05 mm
Thickness Tolerance ± 0.005 mm
Substrate Silicon, Silicon Carbide, Aluminum Nitride, Saphire 0.57 mm
Surface Finish As grown or polished to RA 20nm
Material CVD polycrystalline diamond coated wafer
Wafer Size 1”- 6” in diameter
Diamond Thickness 300nm to 50micron
Edges Laser cut
Lateral Tolerance ± 0.05 mm
Thickness Tolerance ± 0.005 mm
Substrate Silicon, Silicon Carbide, Aluminum Nitride, Saphire 0.57 mm
Surface Finish As grown or polished to RA 20nm
If you have specific requirements, please feel free to contact us.
