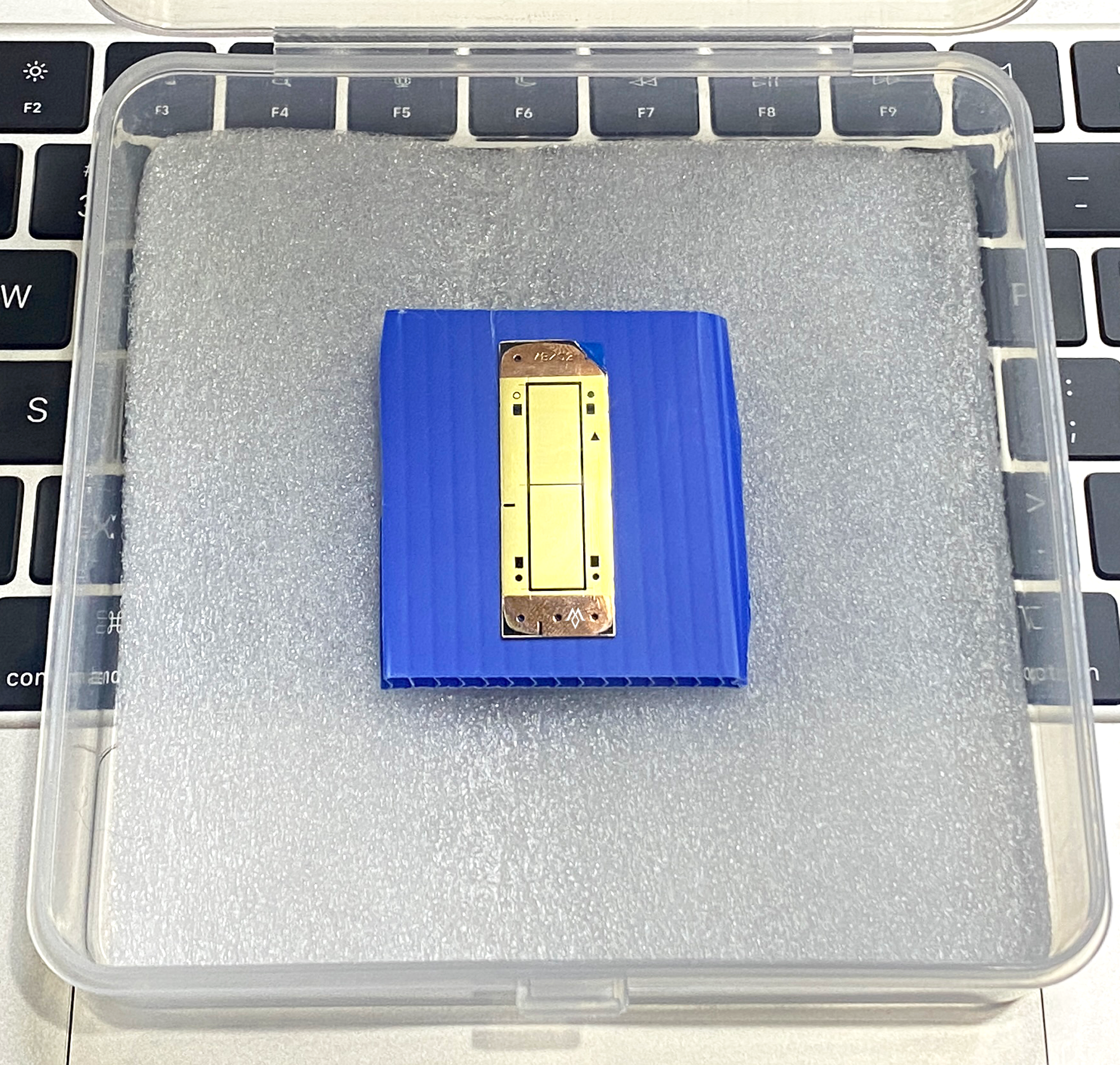

MPT-TM.PCFilm.440150/5.3 POL CU MET-D
Material CVD thermal grade polycrystalline diamond
Size 44 × 15 mm
Thickness 0.53 mm
Edges Laser cut
Lateral Tolerance ± 0.05 mm
Thickness Tolerance ± 0.05 mm
Thermal Conductivity > 1500 W/cm K-1
Metallization Layer Cu on side A and side B
MPT-TM.PCFilm.440150/5.3 POL CU MET-D
Material CVD thermal grade polycrystalline diamond
Size 44 × 15 mm
Thickness 0.53 mm
Edges Laser cut
Lateral Tolerance ± 0.05 mm
Thickness Tolerance ± 0.05 mm
Thermal Conductivity > 1500 W/cm K-1
Metallization Layer Cu on side A and side B
If you have specific requirements, please feel free to contact us.
